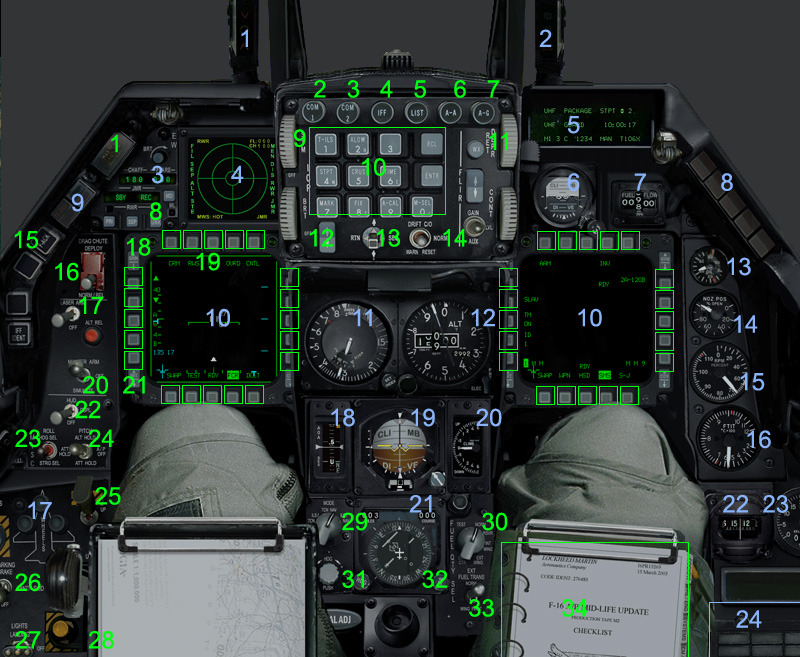

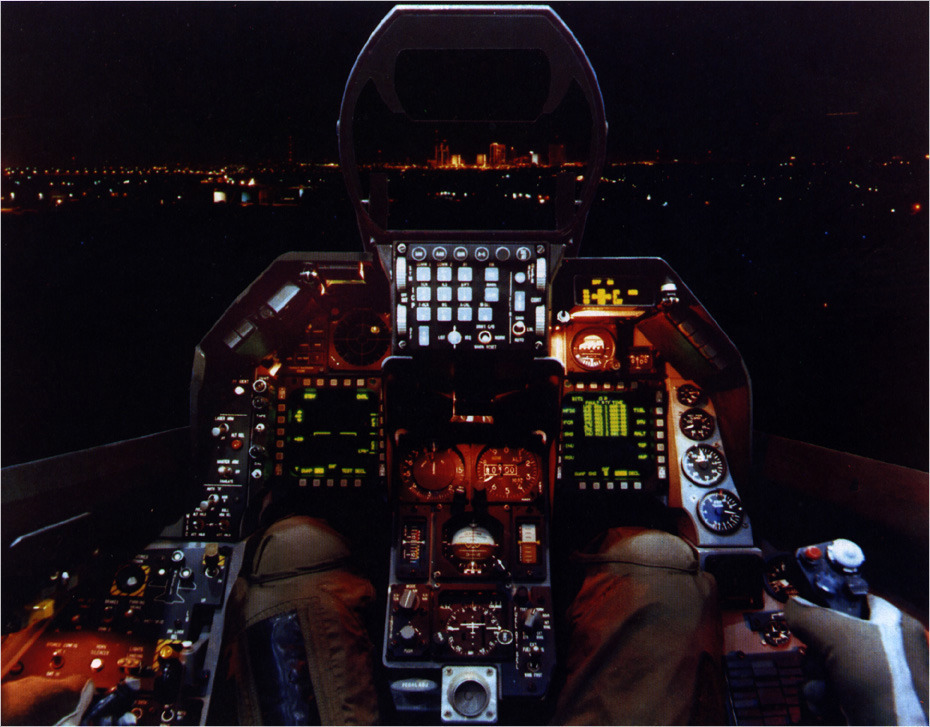

1. Indexer lights AOA
9.  Eyebrow warning lights
17. Landing gear indicator lights
2. Indexer lights REFUEL/NWS

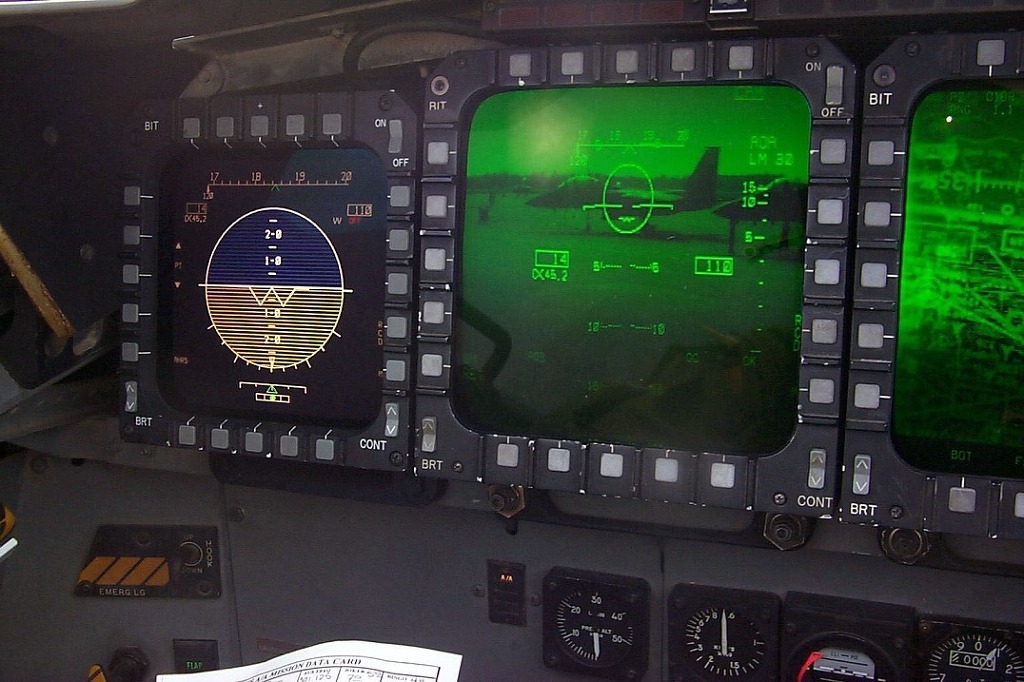

10. MFD
18. AOA indicator
3. EW panel
11. Airspeed in MACH and knots
19. ADI
4. Digital RWR, see below for details
12. Altitude indicator
20. CLIMB indicator
5. DED
13. OIL pressure
21. HSI Horizontal Situation Indicator
6.  Backup Attitude Director Indicator
14. NOZZLE position
22. Standby magnetic compass
7. FUEL FLOW indicator
15. RPM
23. FUEL Indicator
8. Eyebrow warning lights
16. FTIT Fan Turbine Inlet Temperature
24. WARNING lights panel

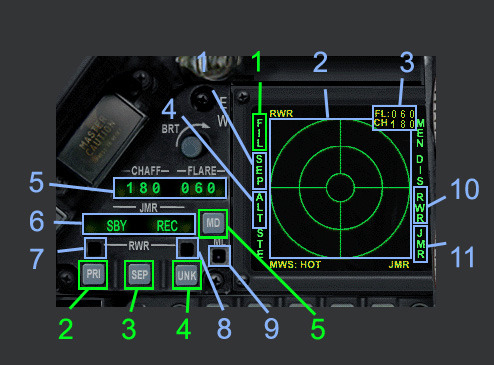

1.Target Separation light(unstack symbols)
6. ECM standby/Exmit display
1. Filter priority threats (push to enable)
2. RWR display
7. Priority mode enabled light
2. Priority mode button
3. Chaff and Flares available numbers
8. Unknown radar sources enabled light
3. Target Separation button
4. Low altitude threats warning
9. Missile launch warning light
4. Unknown radar sources button
5. Chaff and Flares available numbers
10. RWR active light
5. Naval threats Priority button
6. ECM standby/Exmit display
11. Jammer enabled light

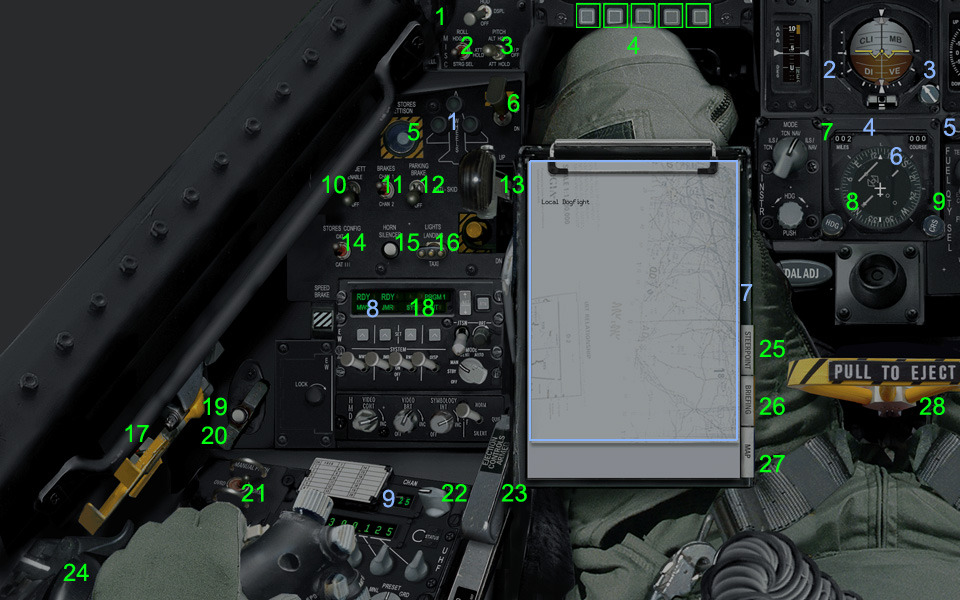

30. Fuel Quantity selector knob

1.  Landing gear indicator lights
4. HSI heading distance in miles
7. Kneeboard
2. AOA indicator
5. HSI course in degrees
8. CMDS see pic below for details
3. ADI
6. HSI
9. UHF Channel #

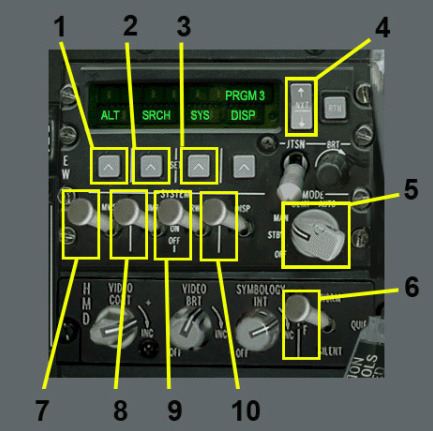

1. ALT button
4. EW Program switch
7. Chaff release power
2. SRCH button, displays Search Radars on the RWR
5. EW main mode switch
8. EW Jammer power
3. RWR toggle RWR system, enables receiving of RWR data
6. RF Silent switch
9. EW RWR power




10. Flare release power

1. ADI
6. HSI
11. LOX indicator
2. CLIMB Indicator
7. Standby magnetic compass
12. EPU FUEL Indicator
3. FTIT
8. FUEL Indicator
13. Clock
4. HSI distance in miles
9. Pilot Fault Display (PFD)


5. HSI course in degrees
10. Hydraulic Press A and B Indicator

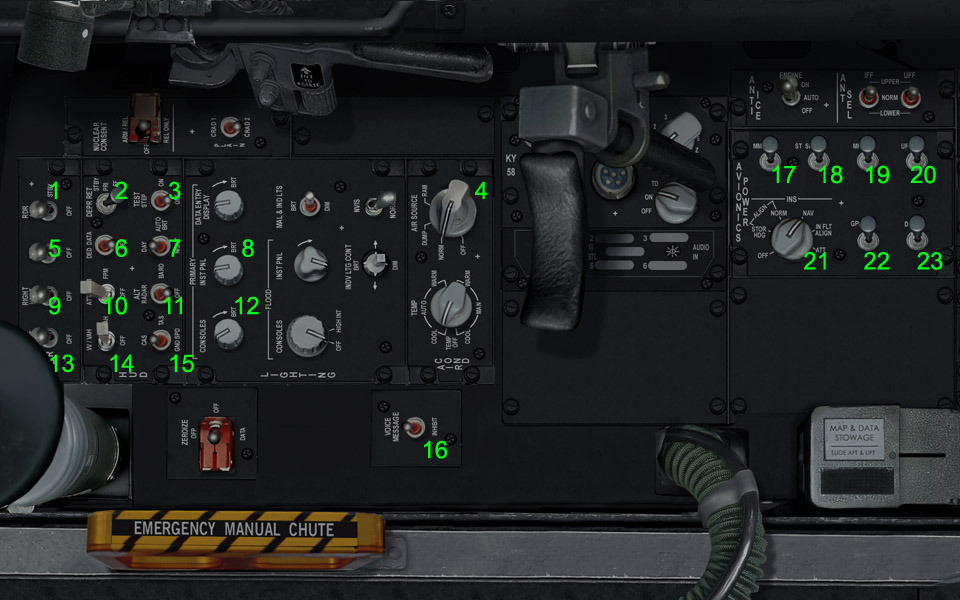

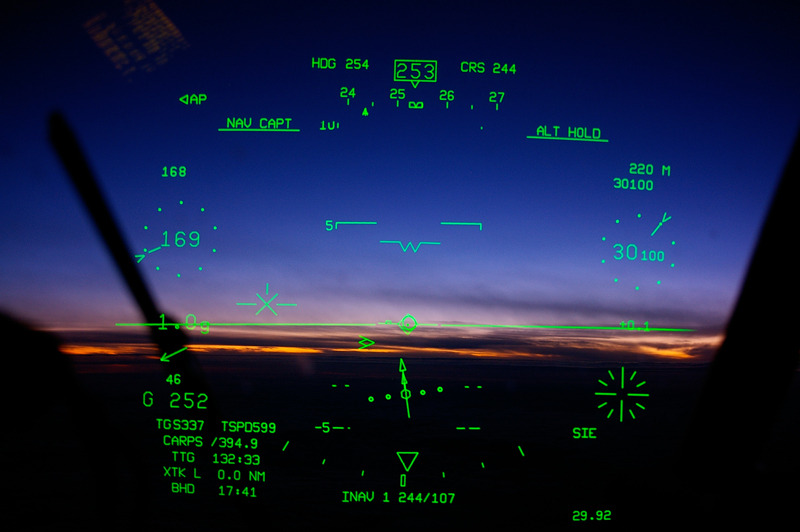

1. Radar ALT switch
9. HUD ATT/FPM switch
17. Power MMC switch (Modular Mission Computer)
2. HUD Depressible Reticle ON/STBY/OFF
10. HUD ALT RADAR switch
18. Power ST/STA switch (Stores Station System)
3. HUD Test step
11. Instruments Lights brightness
19. Power MFD switch (Multi Function Displays)
4. Air Source selector
12. Panel backlighting brightness
20. Power UFC (Up Front Controls= DED and ICP)
5. Right Hardpoint power switch
13. Left Hardpoint power switch
21. Interial Navigation System rotary switch (INS)
6. HUD DED DATA switch
14. HUD Vertical Velocity switch
22. Power GPS switch (Global Positioning System)
7. HUD DAY/NIGHT switch
15. HUD CAS/TAS switch
23. Power Datalink switch (DL), required to Datalink wingman
8. Instruments Lights brightness
16. Voice Inhibit switch
positional data and JSTAR updates Clock

1. Chaff/Flare Slap switch
11. M1/M3 selector switch
21. JFS switch (Jet Fuel Start)
2. Master FUEL switch
12. TACAN channel selectors
22. COMM1 volume/power  rotary switch
3. Engine Feed rotary switch
13. EXT LTS, Anti collision switch
23. UHF panel function switch
4. Air refuel door switch
14. EXT LTS Position lights switch FLASH/STDY
24. COMM2 volume/power  rotary switch
5. EPU FUEL switch
15. EXT LTS Position lights switch Fuselage
25. Terrain following tone(Not enabled) rotary switch
6. ALT FLAPS extend switch
16. Roll Trim rotary switch
26. Secure Voice volume (Not enabled) rotary switch
7. IFF master switch
17. Trim Autopilot/Disc switch
27. Missile tone volume
8. C&I  Communication/Backup switch
18. EXT LTS Master switch
28.Threat tone volume
9. Main ELEC POWER switch
19. YAW Trim rotary switch
29. UHF channel rotary switch
10. Leading Edge FLAPS switch (lock)


20. Pitch Trim rotary switch
